Assignment # 1 Computer Purchase Plan
Computer Purchase Plan
My company is a small video editing company that works with a local broadcast station (a PBS affiliate) to create locally-produced television shows for broadcast and for upload to youtube for viewing online. The systems I will design need to support non-linear video editing, graphic design, creation of 2D animated graphics and file flipping. I will be going with the full Adobe CC Creative Suite for each system. These systems will also will be more cost-efficient as they will also do the work more traditional desktop computers do by having the software installed to do word processing, web browsing, planning (calendars), and email. Each system will have Microsoft Office 365 to meet these needs. My current computer is a Dell G3 15 inch screen gaming laptop with 16 GB of ram, one terabyte hard drive, and NVIDIA GeForce GTX 1050 video card with 4 GB of video ram.
I will create the following desktop computer in an ATX tower case with a 500-watt power supply from Newegg Business.

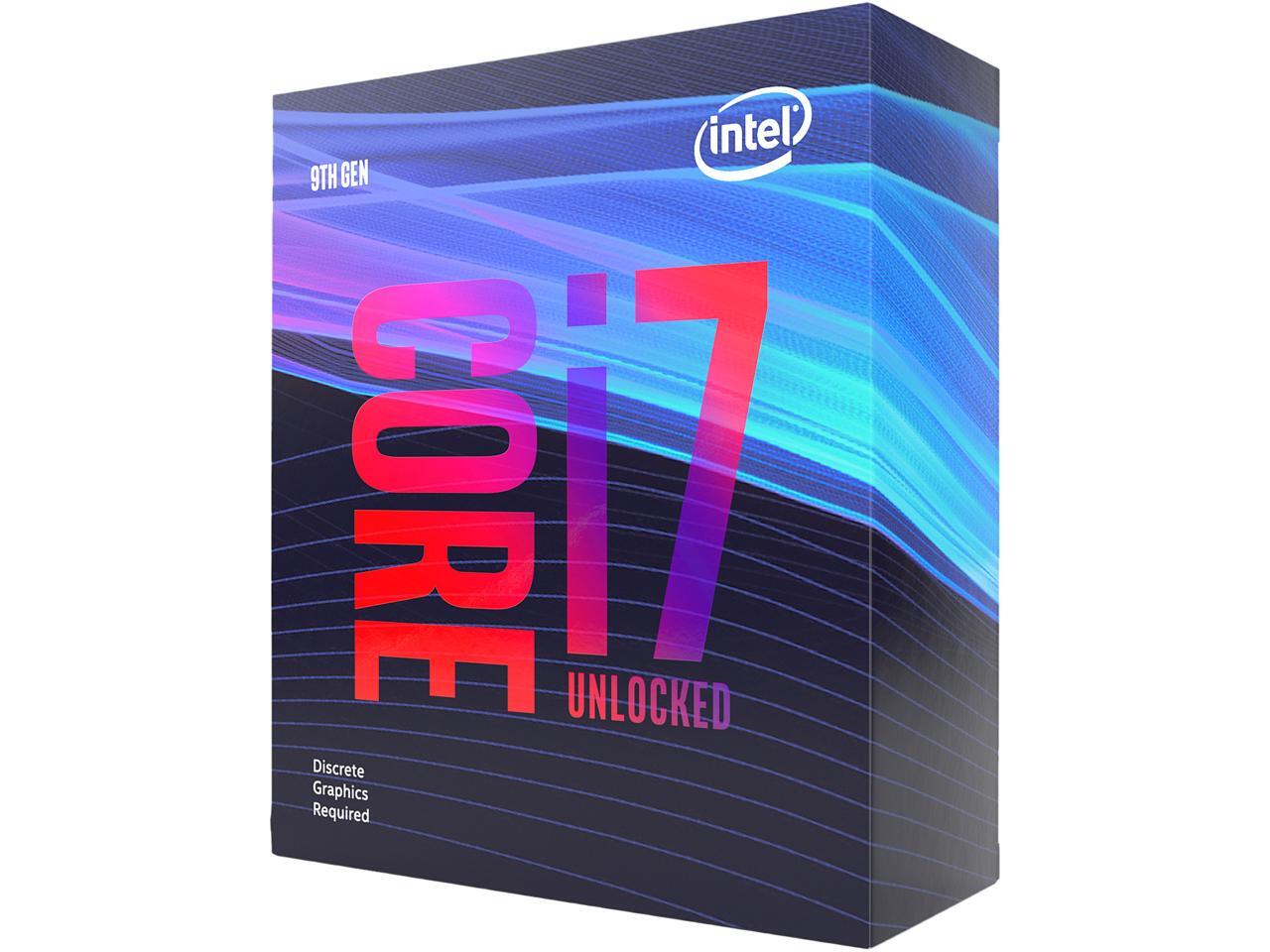

Processor:
Cost: $ 369.99
1 - Core i7-9700KF
Brand Intel
Processors Type Desktop
Series Core i7 9th Gen
Name Core i7-9700KF
Model BX80684I79700KF
CPU Socket Type LGA 1151 (300 Series)
Core Name Coffee Lake
# of Cores 8-Core
# of Threads 8
Operating Frequency of 3.6 GHz
Max Turbo Frequency 4.9 GHz
L3 Cache 12MB
Manufacturing Tech 14nm
64-Bit Support Yes
Memory Types DDR4
Memory Channel 2
PCI Express Revision 3.0
Max Number of PCI Express Lanes 16
Thermal Design Power 95W
Cooling Device Cooling device not included - Processor Only
https://www.neweggbusiness.com/product/product.aspx?item=9b-19-117-994&tpk=9b-19-117-994
Reason:
This 9th generation i7 processor from Intel has 8-Cores that can handle the heavy load of non-linear video editing but also can be purchased from Newegg in multiples. There are faster processors on the site but they are limited to only one per customer. Since I need to build five edit systems this was the best choice.
Cooling Device:
Cost: $ 74.99
1 - COOLER MASTER MLW-D24M-A20PC-R1
Brand COOLER MASTER
Series MasterLiquid ML240L RGB
Model MLW-D24M-A20PC-R1
Type Liquid Cooling System
Block Compatibility Intel LGA 2066 / 2011-v3 / 2011 / 1366 / 1151 / 1150 / 1156 / 1155 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Block Dim. 80.30 x 76.00 x 42.20 mm
Pump Dim. 62.00 x 62.00 x 36.40 mm
Pump Noise < 8 dBA
Radiator Dim. 157.00 x 119.60 x 25.00 mm
Radiator Material Aluminum
Fan Size 2 Fan Slots (120mm)
Fan Dim. 120.00 x 120.00 x 25.00mm
Fan RPM 650 - 2000 RPM (PWM) +/- 10%
Fan Air Flow 66.7 CFM +/- 10%
Fan Noise 6 - 30 dBA
Fan Connector 4 Pin
Color Black
LED Color RGB
https://www.neweggbusiness.com/product/product.aspx?item=9b-2ym-0004-00015
Reason:
The Processor did not come with any kind of cooling system. I went with a liquid cool/fan system because when you have your computer completing complex graphic animation renders it can generate a lot of heat. At times, it would be working on a project for a day or two constantly as it renders the animations and would also endure long days of editing video.
Motherboard:
Cost: $ 125.99
1 - MSI Z390-A PRO
Brand MSI
Series PRO
Model Z390-A PRO
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset Intel Z390
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
* No Display support when using the Processor model with suffix "F"
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCI Express 3.0 x16
PCI Express x1 4 x PCIe 3.0 x1 slots
Other Slots 1 x M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s ports*
* The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
M.2 1 x M.2 slot (Key M)*
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
* The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
Intel Optane Ready Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub
1 x DVI-D
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-A)
2 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)
USB 1.1/2.0 2 x USB 2.0 (High-speed USB) ports (Type-A)*
* The CNVI_1 and JUSB2 share the same bandwidth.
USB Type-C 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
Features
Features DIY Friendly:
Keep Out Zone
XL PCI-E Clip
EZ Debug LED
Pump Fan
Enhance Performance:
Extended Heatsink Design
8-Pin Power Connectors
Turbo M.2
Intel Turbo USB 3.1 Gen2
Core Boost
DDR4 Boost
Multi GPU-2-Way AMD CrossFire Technology
OC GENIE 4
*BIOS
Click BIOS5
XMP
Hardware Monitor
Loyal Comrade:
PCI-E Steel Armor
PCI-E Steel Slot
7000+ Quality Test
https://www.neweggbusiness.com/product/product.aspx?item=9b-13-144-219
Reason:
This MSI motherboard has the proper socket for the processor and has many of the add ons built into it. MSI is a quality motherboard for gaming computers so it can handle loads of video editing and graphics. It can handle the liquid cooler for the processor. The board has plenty of USB 3 Type-A ports, a USB Type-C port, a gigabit internet connection port, a built-in soundboard for audio, and six SATA ports for hooking up the hard drive storage needed for editing. This motherboard has RAID 1, 5, and 10 so the media drives can have backups. The board also has four memory slots that can take up 128 GB of RAM.

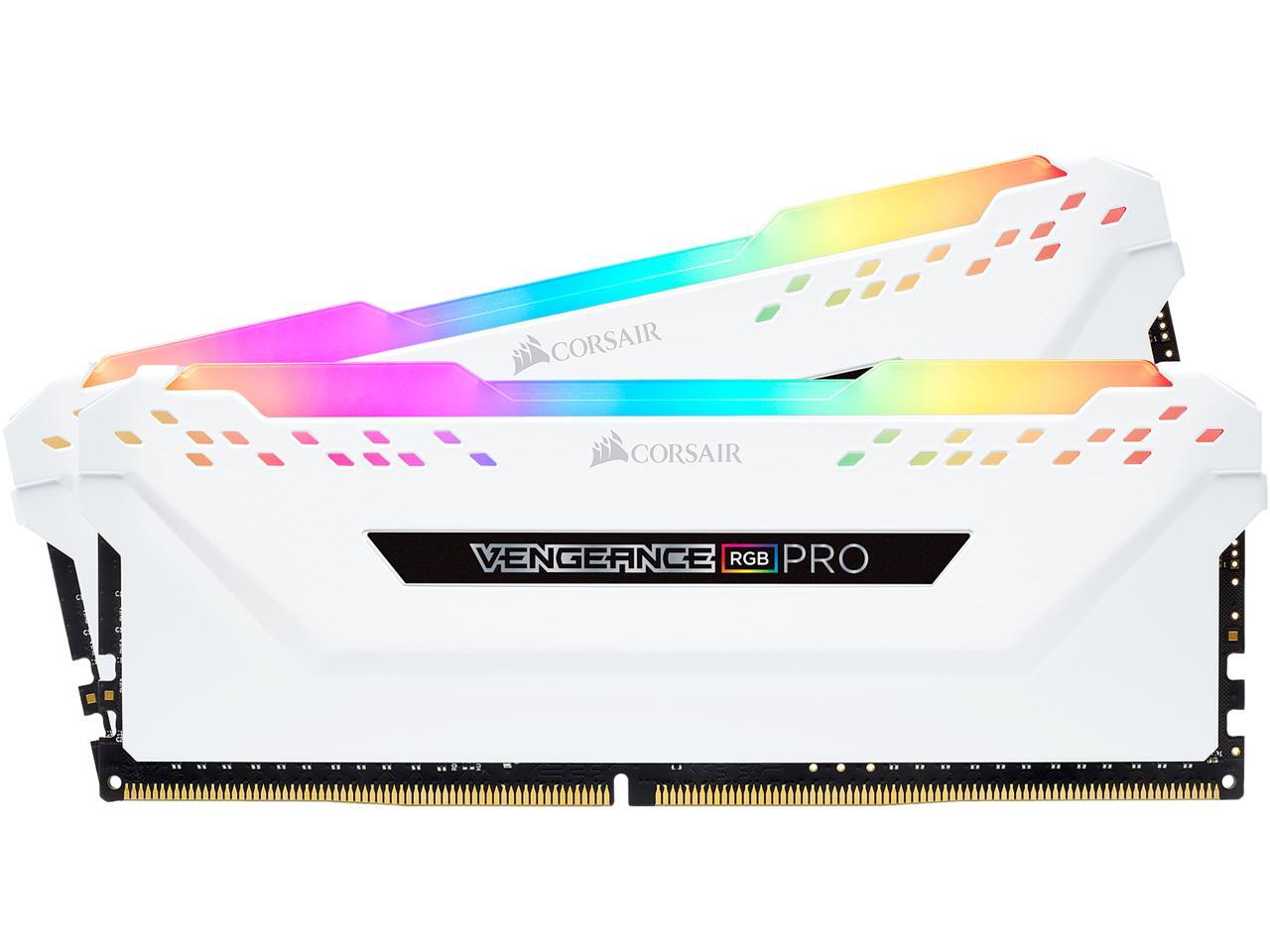

Memory
Cost: $91.99
2 sets - CORSAIR CMW16GX4M2C3200C16W
Brand CORSAIR
Series Vengeance RGB Pro
Model CMW16GX4M2C3200C16W
Details
Capacity 16GB (2 x 8GB)
Type 288-Pin DDR4 SDRAM
Speed DDR4 3200 (PC4 25600)
CAS Latency 16
Timing 16-18-18-36
Voltage 1.35V
Color White
Heat Spreader Anodized Aluminum
Features Dynamic Multi-Zone RGB Lighting
10 Ultra-bright RGB LEDs per module.
Next Generation Software
Take control in CORSAIR iCUE software and synchronize lighting with other CORSAIR RGB products, including CPU coolers, keyboards, and fans.
Custom Performance PCB
It provides the highest signal quality for the greatest level of performance and stability.
Tightly Screened Memory
Carefully screened ICs for extended overclocking potential.
Maximum Bandwidth and Tight Response Times
Optimized for peak performance on the latest Intel and AMD DDR4 motherboards.
No Wires Required
Requires no extra wires or cables for a clean and seamless install.
Maximum bandwidth and tight response time
Optimized on the latest AMD and Intel DDR4 motherboards.
Supports XMP 2.0
A single BIOS setting is all that's required to set your memory to its ideal performance settings, for optimum performance.
LED Color RGB
Fan Included No
https://www.neweggbusiness.com/product/product.aspx?item=9b-20-236-416
Reason:
Corsair is a quality name brand RAM that comes in pairs of 8 GB sticks for a total of 16 GB of total RAM. I would install four sticks of RAM in pairs to have a total of 32 GB of RAM. Having RAM in pairs helps spread the load of video editing between the four sticks. Adobe recommends having 32 GB of RAM if you going to be editing video in 4k.
Hard Drive
Cost: $ 33.00
1 - Seagate ST1000DM003
Brand Seagate
Series Desktop HDD
Model ST1000DM003
Packaging Bare Drive
Performance
Interface SATA 6.0Gb/s
Capacity 1TB
Cache 64MB
Average Latency 6Gb/s
Features
Features The Power of One:
Seagate brings over 30 years of trusted performance and reliability to the Seagate Desktop HDDs
Increase your capacity and drive down costs with up to 1.33TB-per-disk hard drive technology
SATA 6Gb/s interface optimizes burst performance
Seagate AcuTrac servo technology delivers dependable performance
Free DiscWizard software enables high capacities on legacy PC BIOS systems
Seagate Secure models provide hardware-based data security and deliver an Instant Secure Erase feature for safe, fast and easy drive retirement*
Seagate Secure models meet the NIST 800-88 media sanitization specification and also support the Trusted Computer Group (TCG) Opal standard*
Best-Fit Applications:
Desktop or all-in-one PCs
Home servers
Entry-level direct-attached storage devices (DAS)
*Seagate Secure models are not available in all countries. May require TCG-compliant host or controller support.
Dimensions
Form Factor 3.5"
Height (maximum) 19.99mm
Width (maximum) 101.60mm
Length (maximum) 146.99mm
https://www.neweggbusiness.com/product/product.aspx?item=9siv0aha6y0267
Reason:
Seagate has been a name brand quality hard drive company for decades. Seagates are the preferred hard drive for many video production houses. This 1 Terabyte hard drive would act as the system drive with Windows 10 installed as the operating system for the computer. It would also store the programs needed like Adobe Creative Suite and Office 365.
Media Storage Hard Drives:
Cost: $ 95.00
2 drives - Seagate ST4000NM0033
Brand Seagate
Series Constellation ES.3
Model ST4000NM0033
Packaging Bare Drive
Performance
Interface SATA 6.0Gb/s
Capacity 4TB
RPM 7200 RPM
Cache 128MB
Average Latency 6Gb/s
Features
Features Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- Highest-capacity large form factor enterprise drive - up to 4TB - for demanding data growth
- Sixth-generation drive technology with SAS and SATA interfaces for 24x7 reliability
- Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance ensures consistent performance
- Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice technology based on T10/T13 power management standards
- Multi-drive firmware maximized for enterprise RAID system availability
- Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
- Self-Encrypting Drive (AES-256) with FIPS 140-2 validation and Seagate Instant Secure Erase cuts IT drive retirement costs while securely protecting data at rest
Best-Fit Applications
- High-capacity RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Cloud bulk data storage
- Enterprise backup and restore - D2D, virtual tape
- Centralized surveillance
Usage For Enterprise Storage
https://www.neweggbusiness.com/product/product.aspx?item=9siv0ah8ge7257
Reasons:
I would purchase two of these Seagate 4 TB storage drives as media storage for editing and graphics. The pair would be used with the RAID 5 that is built-in on the motherboard for speed and redundancy for the desktop.
Media Drive # 1
Cost: $ 35.99
1 - Rosewill RDCR-11004
Brand Rosewill
Model RDCR-11004
Details
Slots 6
Installation Type Internal
Support - Compact Flash CF/ CF II
Support - Memory Stick Memory Stick (MS), Memory Stick PRO (MS-PRO), MS Duo, MS-PRO Duo and Micro-MS (M2)
Support - MMC Multi Media Card (MMC), RS-MMC, Mobile-MMC and MMC-micro
Support - SD Micro SD, Secure Digital (SD), Mini-SD, Micro-SD (T-flash)
Support - xD xD-Picture Card (xD) including Type M and Type H
Dimensions 2.30" x 6.85" x 8.45"
Features
Features Conveniently positioned at the front of your PC, this six slot media card reader accepts most available cards in a single location. Includes additional USB ports and eSATA port for extra connectivity. Easy to install.
Brushed aluminum fascia panel
6-slot card reader
4-port USB 2.0 HUB
SuperSpeed USB 3.0 connection
2 x USB 3.0 ports, backwards compatible with USB 2.0
eSATA port
Operating System Support: Windows ME/2000/XP/Vista/Window 7/8/10
using Alcor chip for the card reader portion
https://www.neweggbusiness.com/product/product.aspx?item=9b-20-223-120&tpk=9b-20-223-120
Reason:
I have used Rosewill products in the past and have had very good luck with them. Having a built-in media reader is a must on an editing computer. Various types of video cameras shoot on all sorts of media cards and this allows you to ingest the raw footage into the computer's editing drives.
Media Drive #2
Cost: $ 62.25
1 - LG UH12NS40
Brand LG
Model UH12NS40
Part UH12NS40
Type Internal
Performance
Cache 4 MB
BD-ROM Access Time 180ms
DVD-ROM Access Time 160ms
CD-ROM Access Time 150ms
Read Speed
BD-ROM 12X
DVD-ROM 16X
CD-ROM 48X
Write Speed
DVD+R 16X
DVD+RW 8X
DVD-R 16X
DVD-RW 6X
DVD+R DL 8X
DVD-R DL 8X
DVD-RAM 5X
CD-R 48X
CD-RW 24X
Details
Panel Color Black
Load Type Tray
Interface SATA
Dimensions (H x W x D) 1.60" x 5.70" x 6.50"
Weight 1.44 lbs.
Features
System Requirement OPERATING SYSTEMS:
Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP
CPU:
Intel Pentium D 3.2 GHz or Higher (with USB 2.0)
Recommended:
Intel Core 2 Duo P8600 2.4 GHz or higher
HDD:
30 GB or more of available space
RAM:
1 GB or Higher
Graphic Cards:
NVidia: GeForce 7600GT or higher/GeForce 8400 or higher; ATI: ATI Radeon HD 2400 or higher Graphic Card Driver shall meet AACS compliance criteria
Features Superior data protection with M-DISC Support
The M-DISC uses a unique rock-like recording surface instead of organic dye to etch your data onto a disc. The M-DISC has been tested and proven to outlast standard DVDs currently on the market.
Silent Play
The Silent Play technology helps reduce noise during playback by recognizing different multimedia and automatically adjusting the playback speed according to its criteria for optimal performance.
Super Multi Compatibility
LG Super Multi Compatibility optical drives can read and write different types of disc formats in one convenient package.
Windows 10 Compatible
Enjoy complete freedom in use with compatible support for Windows 10.
Experience 3D Blu-ray
Take entertainment to the next level with 3D using the new Power BD-DVD 3D ver. Software bundle. You can now enjoy the excitement of all your favorite Blu-ray titles on your PC and with 2D to 3D converting you can bring a new dimension to all your videos.
BDXL Support: Ultimate Capacity
Three Layer BDXL-R/BDXL RE discs offer 100 GB capacity while quad layer BDXL-R discs boast 128 GB storage capacity on a single disc. It is equivalent of 27 standard DVDs or 5 single-layer Blu-ray discs.
Reason:
Having a Blu-ray / DVD drive and burner allows for software installs from traditional media and allows for videos to burn on DVD or Blu-ray for home players.
Graphics Hardware
Cost: $ 889.99

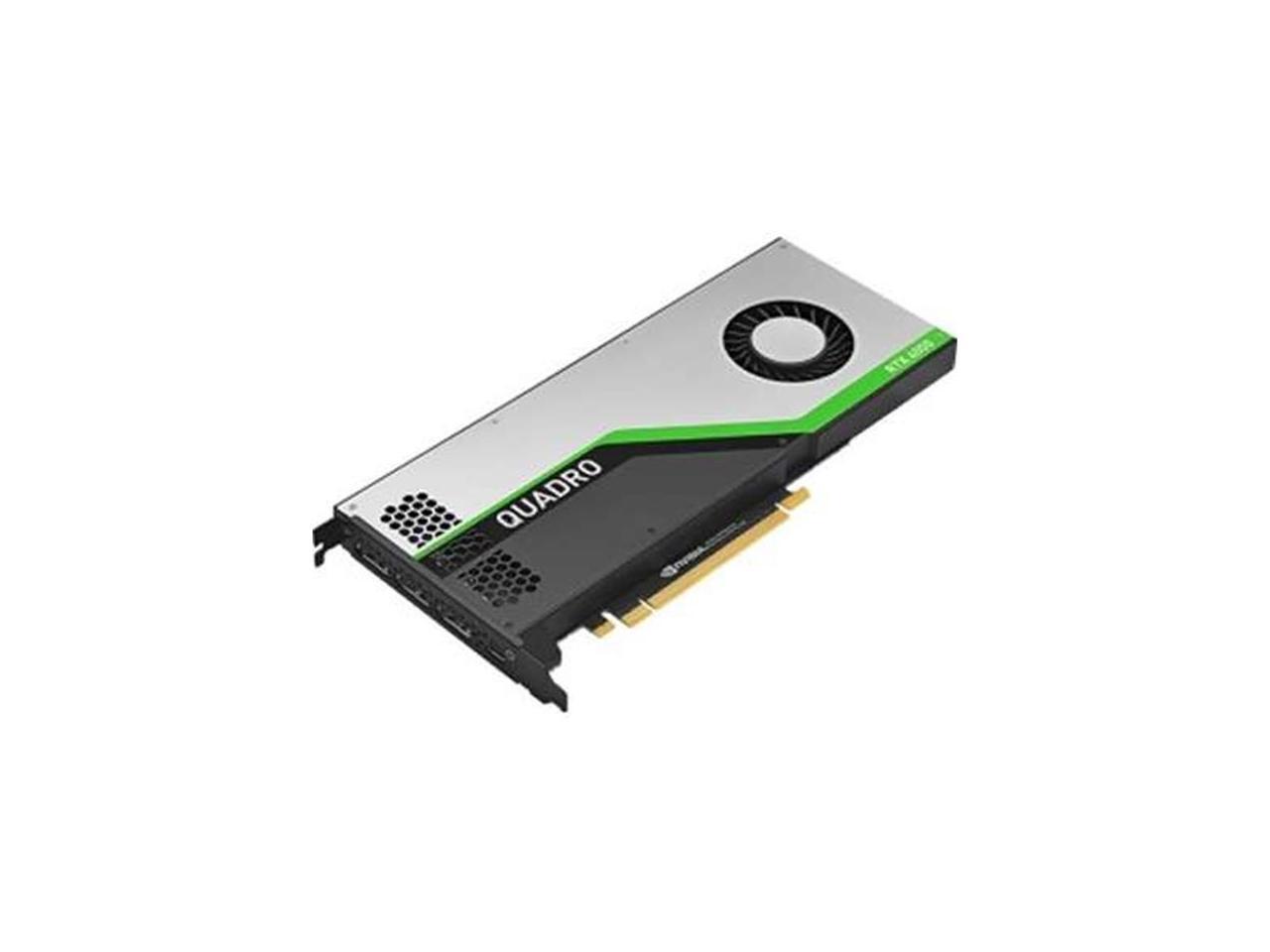

1 - PNY VCQRTX4000-PB
Brand PNY
Model VCQRTX4000-PB
Interface
Interface PCI Express 3.0 x16
Chipset
Chipset Manufacturer NVIDIA
GPU Quadro RTX 4000
CUDA Cores 2304
Floating Point Formats Peak Single Precision FP32 Performance: 7.1 TFLOPS
Peak Half Precision FP16 Performance: 14.2 TFLOPS
Peak Half Precision INT8 Performance: 28.5 TOPS
Deep Learning TFLOPS: 57.0 TFLOPS
Memory
Memory Size 8GB
Memory Type GDDR6
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5
Ports
DisplayPort 3 x DisplayPort 1.4
Other Ports 1 x USB-C
Details
Digital Resolution Maximum DP 1.4 Resolution: HDR 7680 x 4320 at 60 Hz
5K Display Support: HDR 5120 x 2880 at 60 Hz
4K Display Support: HDR 4096 x 2160 or 3840 x 2160 at 120 Hz
Max Displays Per Board 4
SLI Supported Yes
Cooler Ultra-quiet active fansink
Virtual Reality Ready Yes
HDCP Ready Yes
Operating Systems Supported Microsoft Windows 10 (64-bit)
Microsoft Windows 8.1 and 8 (64-bit)
Microsoft Windows 7 (64-bit)
Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)
System Requirements Maximum Power Consumption: 160W
Minimum System Hardware Requirements:
Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
8GB of system memory (more preferred)
Internet connection (for driver installation)
DisplayPort (preferred) or DVI compatible displays
DisplayPort (preferred), HDMI, or DVI compatible display
Features
Features Quadro RTX 4000 combines the NVIDIA Turing GPU architecture with the latest memory and display technologies, to deliver the best performance and features in a single-slot PCI-e form factor. Enjoy greater fluidity with photorealistic rendering, experience faster performance with AI-enabled applications and create detailed, lifelike VR experiences more cost-effectively and across a broader range of workstation chassis configurations.
Quadro RTX 4000 features 36 RT cores to accelerate ray tracing, 288 Tensor cores to accelerate AI and 8GB GDDR6 memory to accommodate large datasets. It is equipped with three DisplayPort 1.4 connectors with HDR support and features the latest VirtualLink connector (that can also drive a DisplayPort panel via an included USB Type-C to DP adapter) to simplify connectivity to next-gen VR HMDs. Additionally, in conjunction with Quadro Sync II you can deploy massive digital signage solutions with higher density and at lower cost.
Form Factor & Dimensions
Dimensions (L x H) 10.50" x 4.40"
Packaging
Package Contents NVIDIA Quadro RTX 4000 professional graphics card
Quadro RTX Quick Start Guide
Quadro Support Guide
USB Type-C to DP adapter
DisplayPort to DVI-D SL adapter
DisplayPort to HDMI adapter
Auxiliary power cable
Form Factor & Dimensions
Slot Width Single-slot
https://www.neweggbusiness.com/product/product.aspx?item=9b-2vv-000k-000t1
Reason:
This PNY Quadro RTX 4000 video card has 8 GB of dedicated video RAM and has three HDMI outputs so you can use two computer monitors for desktop display and a third for a client monitor or editing monitor. This allows you to see your video at full-screen like someone would on a television. This video card is one that is recommended by Adobe.
Video Display
Cost: $ 499.99
3 Displays - Dell U2718Q (two as edit monitors and one as a client monitor)
Brand Dell
Model U2718Q
Cabinet Color Black
Display
Screen Size 27"
Glare Screen Yes
LED Backlight Yes
Recommended Resolution 3840 x 2160 (4K)
Viewing Angle 178° (H) / 178° (V)
Pixel Pitch 0.1554mm x 0.1554mm
Display Colors 1.07 Billion
Brightness 350 cd/m2
Contrast Ratio 1,300:1
Aspect Ratio 16:9
Response Time 5 ms
Panel IPS
Display Type 4K
Connectivity
HDMI 1
DisplayPort 1 x DP (ver. 1.2)
1 x mDP (ver. 1.2)
USB 2.0 Yes
USB 3.0 1 x USB 3.0 port - Upstream
4 x USB 3.0 ports, including 2 x USB3.0 BC1.2 charging capability at 2A (max)
Power
Power Supply 100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.5 A (typical)
Power Consumption Power Consumption (Operational): 30W (typical) / 99W (maximum) / 24.32W (Energy Star)
Power Consumption Stand by / Sleep: Less than 0.3W
Convenience
Regulatory Approvals Energy Star certified
EPEAT Gold
TCO Certified Display
RoHS Compliant
Stand Adjustments Height adjustable (130 mm)
Tilt (-5 degree to 21 degree)
Swivel (-45 degree to 45 degree)
Pivot (90 degree, clockwise & anti-clockwise directions)
Built-in Speakers USB Hub
Built-in Webcam USB Hub
VESA Compatibility - Mountable 100 x 100mm
Features Display Screen Coating: Antiglare with hard-coating 3H
Pixel Per Inch (PPI): 163
Dell Display Manager Compatibility: Yes, Easy Arrange and other key features
Remote Asset Management: Yes, via Dell Command |Monitor
Operating system supported: Windows 10, 8.1. 7
Built-in Devices: USB3.0 super-speed Hub (4 x USB3.0 downstream ports, including 2x USB 3.0 BC1.2 charging port at 2A max.)
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to panel)
Dimensions & Weight
Dimensions (H x W x D) 16.15" - 21.27" x 24.07" x 7.89" w/stand
14.02" x 24.07" x 1.93" w/o stand
Weight 8.16 lbs. w/o stand
Environmental
Temperature Range Operating: 0 degree C to 40 degree C (32 degree F to 104 degree F)
Non-operating: –20 degree C to 60 degree C (–4 degree F to 140 degree F)
Humidity Range Operating: 10% to 80% (non-condensing)
Non-Operating:5% to 90% (non-condensing)
https://www.neweggbusiness.com/product/product.aspx?item=9siv0sf9c09501
Reason:
When working on a non-linear editor you need to have color-accurate displays and the 27 inch Dell monitors have a good reputation for this. These displays had some problems early in their release but now thanks to updates they are wonderfully priced monitors. This three monitor set up lets the editor have two for screen layout and one monitor dedicated to full-screen display.
Speakers
Cost: $ 24.88
1 - Logitech Z200
Brand Logitech
Model Z200
Part Number 980-000800
Details
Type Speaker System
Color Black
Configuration 2.0
Total Power 5 Watts
System Requirements Any device with a headphone jack (3.5 mm) input
Television
Computer
Smartphone
Tablet
Music player
Dimensions & Weight
Dimension 9.50" x 3.54" x 4.89"
Weight 3.05 lbs.
Features
Features Rich stereo sound: Two 2.50" drivers per speaker pump out 10 Watts peak power for clear stereo sound with added deep bass
Use with multiple devices: Plug in two devices at the same time, like your smartphone plus tablet or laptop, via a 3.5 mm audio input plus auxiliary line
Fingertip controls: On-speaker volume, power and bass controls for quick and easy audio adjustments
Handy headphone jack: Listen to music, movies and games in total privacy
https://www.neweggbusiness.com/product/product.aspx?item=9siv0b649b6925
Reason:
When working with sound in your video projects you need speakers that don't take up a lot of desk space but still can deliver full sound so you know what your video projects will sound like. These will be attached to the audio board on the motherboard above.
Operating System:
Cost: $ 199.99
1- Windows 10 Pro (USB Flash Drive)
Brand Microsoft
Model HAV-00059
Details
Name Windows 10 Pro (USB Flash Drive)
Bit Version 32-bit/64-bit
Version Pro
Packaging Retail
Features
Feature Get all the features of Windows 10 Home operating system plus enterprise-grade security, powerful management tools like single sign-on, and enhanced productivity with Remote Desktop and Cortana. Licensed for 1 PC or Mac.
If you run a small business and want enhanced functionality, Windows 10 Pro is the way to go; Manage your business with simple and flexible management, so you can get more done; Windows 10 Pro comes with built-in security features, including firewall and internet protections; BitLocker data encryption and protection help keep your information safe; Windows Hello is the password-free sign-in that gives you the fastest, most secure way to unlock your Windows devices.
https://www.neweggbusiness.com/product/product.aspx?item=9b-32-350-412
Reason
Windows 10 is the industry standard for PC computers and is compatible with the other software that will be installed on this system.
Additional Software:
Cost: $ 54.97 per year
Office 365 Personal - 1 Year / 1 Person
Brand Microsoft
Model QQ2-00728
Type Office Suite
Details
Name Office 365 Personal - 1 Year / 1 Person
Operating Systems Supported Windows & Mac OS & Android & iOS
Packaging Retail
https://www.neweggbusiness.com/product/product.aspx?item=9siv1uzafd7535
Reason:
The industry standard for word processing, email, spreadsheets, and presentations.
Additional Software:
Cost: $ 599.88 per year
Adobe Creative Cloud All Apps
INCLUDES:
Photoshop
Illustrator
InDesign
Adobe XD
Lightroom
Acrobat Pro
Animate
Dreamweaver
Premiere Pro
Premiere Rush
After Effects
Dimension
Audition
InCopy
Lightroom Classic
Media Encoder
Character Animator
Prelude
Fuse
Bridge
Access to the latest features and updates as soon as they’re released
100GB of cloud storage, Adobe Portfolio, Adobe Fonts, and Adobe Spark
https://www.adobe.com/creativecloud/plans.html?promoid=P3KMQYMW&mv=other
Reason:
This is the best complete bundle for anyone wanting to do video production and graphics generation.
Warranty:
With the cost of these systems, it is risky but best to just go with the manufacturers' standard warranties. So 1-year parts and 90 days labor. This is an area where you can save some money even though it means taking a bit of a gamble.
Backup:
Cost: $ 200.99
1 - WD WDBBGB0100HBK-NESN
Brand WD
Series My Book
Model WDBBGB0100HBK-NESN
Performance
Color Black
Interface USB 3.0
Capacity 10TB
Features
Features Complete Backup
My Book desktop storage comes equipped with WD Backup software and Time Machine compatibility to help make sure your photos, videos, music and documents don't get lost. You can set it to run automatically to your schedule. Just pick the time and frequency to back up important files from your system. My Book desktop storage also works great with Acronis True Image WD Edition software to schedule complete system backups.
With the power of WD Backup, Time Machine compatibility and Acronis True Image WD Edition software, you've got complete backup routine options to help recover data in the event of a computer virus, computer failure, or if you accidentally press "delete".
Password Protection with Hardware Encryption
The My Book device's built-in 256-bit AES hardware encryption with WD Security tools helps keep your content private and safe. Just activate password protection and set your own personalized password.
For quick, convenient access, you can set WD Security to automatically unlock the device on your computer, saving you the hassle of keying in your password every time.
Do more with WD Discovery
Included WD Discovery software connects to popular social media and cloud storage services, like Facebook, Dropbox and Google Drive. Import your photos, videos and docs to the My Book drive to help preserve your online life. WD Discovery can also be used to manage your drive with WD Drive Utilities.
Easy to Use
My Book desktop storage is ready to use out of the box so you can start transferring files, saving your memories and backing up right away. It comes with all the software you need to help protect your data, including WD Backup and WD Security software and is compatible with Time Machine.
System Requirements Formatted exFAT for out-of-the-box compatibility with Windows and Mac
Operating System: Windows 10, Windows 8.1, Windows 7; macOS High Sierra, Sierra or El Capitan
May require reformatting for other operating systems
https://www.neweggbusiness.com/product/product.aspx?item=9b-22-234-346&tpk=9b-22-234-346
Reason:
This external hard drive adds an extra layer of backup beyond the installed RAID 5 already used the computers internal system. WD is another industry standard when it comes to dependable affordable hard drives.
Total Cost without annual subscriptions: $ 3,912.01
Total Cost with an annual subscription the first year: $ 4,566.86
Summary:
Working with video and doing graphics work is some of the most intensive and expensive work that a computer can do. When building a work station for projects such as these you want to spend more upfront so that your system is not obsolete in three years. The hope is you can get at least four to six years out of the hardware before the production software makes it obsolete.
I will create the following desktop computer in an ATX tower case with a 500-watt power supply from Newegg Business.
Processor:
Cost: $ 369.99
1 - Core i7-9700KF
Brand Intel
Processors Type Desktop
Series Core i7 9th Gen
Name Core i7-9700KF
Model BX80684I79700KF
CPU Socket Type LGA 1151 (300 Series)
Core Name Coffee Lake
# of Cores 8-Core
# of Threads 8
Operating Frequency of 3.6 GHz
Max Turbo Frequency 4.9 GHz
L3 Cache 12MB
Manufacturing Tech 14nm
64-Bit Support Yes
Memory Types DDR4
Memory Channel 2
PCI Express Revision 3.0
Max Number of PCI Express Lanes 16
Thermal Design Power 95W
Cooling Device Cooling device not included - Processor Only
https://www.neweggbusiness.com/product/product.aspx?item=9b-19-117-994&tpk=9b-19-117-994
Reason:
This 9th generation i7 processor from Intel has 8-Cores that can handle the heavy load of non-linear video editing but also can be purchased from Newegg in multiples. There are faster processors on the site but they are limited to only one per customer. Since I need to build five edit systems this was the best choice.
Cooling Device:
Cost: $ 74.99
1 - COOLER MASTER MLW-D24M-A20PC-R1
Brand COOLER MASTER
Series MasterLiquid ML240L RGB
Model MLW-D24M-A20PC-R1
Type Liquid Cooling System
Block Compatibility Intel LGA 2066 / 2011-v3 / 2011 / 1366 / 1151 / 1150 / 1156 / 1155 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Block Dim. 80.30 x 76.00 x 42.20 mm
Pump Dim. 62.00 x 62.00 x 36.40 mm
Pump Noise < 8 dBA
Radiator Dim. 157.00 x 119.60 x 25.00 mm
Radiator Material Aluminum
Fan Size 2 Fan Slots (120mm)
Fan Dim. 120.00 x 120.00 x 25.00mm
Fan RPM 650 - 2000 RPM (PWM) +/- 10%
Fan Air Flow 66.7 CFM +/- 10%
Fan Noise 6 - 30 dBA
Fan Connector 4 Pin
Color Black
LED Color RGB
https://www.neweggbusiness.com/product/product.aspx?item=9b-2ym-0004-00015
Reason:
The Processor did not come with any kind of cooling system. I went with a liquid cool/fan system because when you have your computer completing complex graphic animation renders it can generate a lot of heat. At times, it would be working on a project for a day or two constantly as it renders the animations and would also endure long days of editing video.
Motherboard:
Cost: $ 125.99
1 - MSI Z390-A PRO
Brand MSI
Series PRO
Model Z390-A PRO
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset Intel Z390
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
* No Display support when using the Processor model with suffix "F"
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCI Express 3.0 x16
PCI Express x1 4 x PCIe 3.0 x1 slots
Other Slots 1 x M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s ports*
* The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
M.2 1 x M.2 slot (Key M)*
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
* The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
Intel Optane Ready Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub
1 x DVI-D
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-A)
2 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)
USB 1.1/2.0 2 x USB 2.0 (High-speed USB) ports (Type-A)*
* The CNVI_1 and JUSB2 share the same bandwidth.
USB Type-C 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
Features
Features DIY Friendly:
Keep Out Zone
XL PCI-E Clip
EZ Debug LED
Pump Fan
Enhance Performance:
Extended Heatsink Design
8-Pin Power Connectors
Turbo M.2
Intel Turbo USB 3.1 Gen2
Core Boost
DDR4 Boost
Multi GPU-2-Way AMD CrossFire Technology
OC GENIE 4
*BIOS
Click BIOS5
XMP
Hardware Monitor
Loyal Comrade:
PCI-E Steel Armor
PCI-E Steel Slot
7000+ Quality Test
https://www.neweggbusiness.com/product/product.aspx?item=9b-13-144-219
Reason:
This MSI motherboard has the proper socket for the processor and has many of the add ons built into it. MSI is a quality motherboard for gaming computers so it can handle loads of video editing and graphics. It can handle the liquid cooler for the processor. The board has plenty of USB 3 Type-A ports, a USB Type-C port, a gigabit internet connection port, a built-in soundboard for audio, and six SATA ports for hooking up the hard drive storage needed for editing. This motherboard has RAID 1, 5, and 10 so the media drives can have backups. The board also has four memory slots that can take up 128 GB of RAM.
Memory
Cost: $91.99
2 sets - CORSAIR CMW16GX4M2C3200C16W
Brand CORSAIR
Series Vengeance RGB Pro
Model CMW16GX4M2C3200C16W
Details
Capacity 16GB (2 x 8GB)
Type 288-Pin DDR4 SDRAM
Speed DDR4 3200 (PC4 25600)
CAS Latency 16
Timing 16-18-18-36
Voltage 1.35V
Color White
Heat Spreader Anodized Aluminum
Features Dynamic Multi-Zone RGB Lighting
10 Ultra-bright RGB LEDs per module.
Next Generation Software
Take control in CORSAIR iCUE software and synchronize lighting with other CORSAIR RGB products, including CPU coolers, keyboards, and fans.
Custom Performance PCB
It provides the highest signal quality for the greatest level of performance and stability.
Tightly Screened Memory
Carefully screened ICs for extended overclocking potential.
Maximum Bandwidth and Tight Response Times
Optimized for peak performance on the latest Intel and AMD DDR4 motherboards.
No Wires Required
Requires no extra wires or cables for a clean and seamless install.
Maximum bandwidth and tight response time
Optimized on the latest AMD and Intel DDR4 motherboards.
Supports XMP 2.0
A single BIOS setting is all that's required to set your memory to its ideal performance settings, for optimum performance.
LED Color RGB
Fan Included No
https://www.neweggbusiness.com/product/product.aspx?item=9b-20-236-416
Reason:
Corsair is a quality name brand RAM that comes in pairs of 8 GB sticks for a total of 16 GB of total RAM. I would install four sticks of RAM in pairs to have a total of 32 GB of RAM. Having RAM in pairs helps spread the load of video editing between the four sticks. Adobe recommends having 32 GB of RAM if you going to be editing video in 4k.
Hard Drive
Cost: $ 33.00
1 - Seagate ST1000DM003
Brand Seagate
Series Desktop HDD
Model ST1000DM003
Packaging Bare Drive
Performance
Interface SATA 6.0Gb/s
Capacity 1TB
Cache 64MB
Average Latency 6Gb/s
Features
Features The Power of One:
Seagate brings over 30 years of trusted performance and reliability to the Seagate Desktop HDDs
Increase your capacity and drive down costs with up to 1.33TB-per-disk hard drive technology
SATA 6Gb/s interface optimizes burst performance
Seagate AcuTrac servo technology delivers dependable performance
Free DiscWizard software enables high capacities on legacy PC BIOS systems
Seagate Secure models provide hardware-based data security and deliver an Instant Secure Erase feature for safe, fast and easy drive retirement*
Seagate Secure models meet the NIST 800-88 media sanitization specification and also support the Trusted Computer Group (TCG) Opal standard*
Best-Fit Applications:
Desktop or all-in-one PCs
Home servers
Entry-level direct-attached storage devices (DAS)
*Seagate Secure models are not available in all countries. May require TCG-compliant host or controller support.
Dimensions
Form Factor 3.5"
Height (maximum) 19.99mm
Width (maximum) 101.60mm
Length (maximum) 146.99mm
https://www.neweggbusiness.com/product/product.aspx?item=9siv0aha6y0267
Reason:
Seagate has been a name brand quality hard drive company for decades. Seagates are the preferred hard drive for many video production houses. This 1 Terabyte hard drive would act as the system drive with Windows 10 installed as the operating system for the computer. It would also store the programs needed like Adobe Creative Suite and Office 365.
Media Storage Hard Drives:
Cost: $ 95.00
2 drives - Seagate ST4000NM0033
Brand Seagate
Series Constellation ES.3
Model ST4000NM0033
Packaging Bare Drive
Performance
Interface SATA 6.0Gb/s
Capacity 4TB
RPM 7200 RPM
Cache 128MB
Average Latency 6Gb/s
Features
Features Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- Highest-capacity large form factor enterprise drive - up to 4TB - for demanding data growth
- Sixth-generation drive technology with SAS and SATA interfaces for 24x7 reliability
- Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance ensures consistent performance
- Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice technology based on T10/T13 power management standards
- Multi-drive firmware maximized for enterprise RAID system availability
- Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
- Self-Encrypting Drive (AES-256) with FIPS 140-2 validation and Seagate Instant Secure Erase cuts IT drive retirement costs while securely protecting data at rest
Best-Fit Applications
- High-capacity RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Cloud bulk data storage
- Enterprise backup and restore - D2D, virtual tape
- Centralized surveillance
Usage For Enterprise Storage
https://www.neweggbusiness.com/product/product.aspx?item=9siv0ah8ge7257
Reasons:
I would purchase two of these Seagate 4 TB storage drives as media storage for editing and graphics. The pair would be used with the RAID 5 that is built-in on the motherboard for speed and redundancy for the desktop.
Media Drive # 1
Cost: $ 35.99
1 - Rosewill RDCR-11004
Brand Rosewill
Model RDCR-11004
Details
Slots 6
Installation Type Internal
Support - Compact Flash CF/ CF II
Support - Memory Stick Memory Stick (MS), Memory Stick PRO (MS-PRO), MS Duo, MS-PRO Duo and Micro-MS (M2)
Support - MMC Multi Media Card (MMC), RS-MMC, Mobile-MMC and MMC-micro
Support - SD Micro SD, Secure Digital (SD), Mini-SD, Micro-SD (T-flash)
Support - xD xD-Picture Card (xD) including Type M and Type H
Dimensions 2.30" x 6.85" x 8.45"
Features
Features Conveniently positioned at the front of your PC, this six slot media card reader accepts most available cards in a single location. Includes additional USB ports and eSATA port for extra connectivity. Easy to install.
Brushed aluminum fascia panel
6-slot card reader
4-port USB 2.0 HUB
SuperSpeed USB 3.0 connection
2 x USB 3.0 ports, backwards compatible with USB 2.0
eSATA port
Operating System Support: Windows ME/2000/XP/Vista/Window 7/8/10
using Alcor chip for the card reader portion
https://www.neweggbusiness.com/product/product.aspx?item=9b-20-223-120&tpk=9b-20-223-120
Reason:
I have used Rosewill products in the past and have had very good luck with them. Having a built-in media reader is a must on an editing computer. Various types of video cameras shoot on all sorts of media cards and this allows you to ingest the raw footage into the computer's editing drives.
Media Drive #2
Cost: $ 62.25
1 - LG UH12NS40
Brand LG
Model UH12NS40
Part UH12NS40
Type Internal
Performance
Cache 4 MB
BD-ROM Access Time 180ms
DVD-ROM Access Time 160ms
CD-ROM Access Time 150ms
Read Speed
BD-ROM 12X
DVD-ROM 16X
CD-ROM 48X
Write Speed
DVD+R 16X
DVD+RW 8X
DVD-R 16X
DVD-RW 6X
DVD+R DL 8X
DVD-R DL 8X
DVD-RAM 5X
CD-R 48X
CD-RW 24X
Details
Panel Color Black
Load Type Tray
Interface SATA
Dimensions (H x W x D) 1.60" x 5.70" x 6.50"
Weight 1.44 lbs.
Features
System Requirement OPERATING SYSTEMS:
Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP
CPU:
Intel Pentium D 3.2 GHz or Higher (with USB 2.0)
Recommended:
Intel Core 2 Duo P8600 2.4 GHz or higher
HDD:
30 GB or more of available space
RAM:
1 GB or Higher
Graphic Cards:
NVidia: GeForce 7600GT or higher/GeForce 8400 or higher; ATI: ATI Radeon HD 2400 or higher Graphic Card Driver shall meet AACS compliance criteria
Features Superior data protection with M-DISC Support
The M-DISC uses a unique rock-like recording surface instead of organic dye to etch your data onto a disc. The M-DISC has been tested and proven to outlast standard DVDs currently on the market.
Silent Play
The Silent Play technology helps reduce noise during playback by recognizing different multimedia and automatically adjusting the playback speed according to its criteria for optimal performance.
Super Multi Compatibility
LG Super Multi Compatibility optical drives can read and write different types of disc formats in one convenient package.
Windows 10 Compatible
Enjoy complete freedom in use with compatible support for Windows 10.
Experience 3D Blu-ray
Take entertainment to the next level with 3D using the new Power BD-DVD 3D ver. Software bundle. You can now enjoy the excitement of all your favorite Blu-ray titles on your PC and with 2D to 3D converting you can bring a new dimension to all your videos.
BDXL Support: Ultimate Capacity
Three Layer BDXL-R/BDXL RE discs offer 100 GB capacity while quad layer BDXL-R discs boast 128 GB storage capacity on a single disc. It is equivalent of 27 standard DVDs or 5 single-layer Blu-ray discs.
Reason:
Having a Blu-ray / DVD drive and burner allows for software installs from traditional media and allows for videos to burn on DVD or Blu-ray for home players.
Graphics Hardware
Cost: $ 889.99
1 - PNY VCQRTX4000-PB
Brand PNY
Model VCQRTX4000-PB
Interface
Interface PCI Express 3.0 x16
Chipset
Chipset Manufacturer NVIDIA
GPU Quadro RTX 4000
CUDA Cores 2304
Floating Point Formats Peak Single Precision FP32 Performance: 7.1 TFLOPS
Peak Half Precision FP16 Performance: 14.2 TFLOPS
Peak Half Precision INT8 Performance: 28.5 TOPS
Deep Learning TFLOPS: 57.0 TFLOPS
Memory
Memory Size 8GB
Memory Type GDDR6
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5
Ports
DisplayPort 3 x DisplayPort 1.4
Other Ports 1 x USB-C
Details
Digital Resolution Maximum DP 1.4 Resolution: HDR 7680 x 4320 at 60 Hz
5K Display Support: HDR 5120 x 2880 at 60 Hz
4K Display Support: HDR 4096 x 2160 or 3840 x 2160 at 120 Hz
Max Displays Per Board 4
SLI Supported Yes
Cooler Ultra-quiet active fansink
Virtual Reality Ready Yes
HDCP Ready Yes
Operating Systems Supported Microsoft Windows 10 (64-bit)
Microsoft Windows 8.1 and 8 (64-bit)
Microsoft Windows 7 (64-bit)
Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)
System Requirements Maximum Power Consumption: 160W
Minimum System Hardware Requirements:
Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
8GB of system memory (more preferred)
Internet connection (for driver installation)
DisplayPort (preferred) or DVI compatible displays
DisplayPort (preferred), HDMI, or DVI compatible display
Features
Features Quadro RTX 4000 combines the NVIDIA Turing GPU architecture with the latest memory and display technologies, to deliver the best performance and features in a single-slot PCI-e form factor. Enjoy greater fluidity with photorealistic rendering, experience faster performance with AI-enabled applications and create detailed, lifelike VR experiences more cost-effectively and across a broader range of workstation chassis configurations.
Quadro RTX 4000 features 36 RT cores to accelerate ray tracing, 288 Tensor cores to accelerate AI and 8GB GDDR6 memory to accommodate large datasets. It is equipped with three DisplayPort 1.4 connectors with HDR support and features the latest VirtualLink connector (that can also drive a DisplayPort panel via an included USB Type-C to DP adapter) to simplify connectivity to next-gen VR HMDs. Additionally, in conjunction with Quadro Sync II you can deploy massive digital signage solutions with higher density and at lower cost.
Form Factor & Dimensions
Dimensions (L x H) 10.50" x 4.40"
Packaging
Package Contents NVIDIA Quadro RTX 4000 professional graphics card
Quadro RTX Quick Start Guide
Quadro Support Guide
USB Type-C to DP adapter
DisplayPort to DVI-D SL adapter
DisplayPort to HDMI adapter
Auxiliary power cable
Form Factor & Dimensions
Slot Width Single-slot
https://www.neweggbusiness.com/product/product.aspx?item=9b-2vv-000k-000t1
Reason:
This PNY Quadro RTX 4000 video card has 8 GB of dedicated video RAM and has three HDMI outputs so you can use two computer monitors for desktop display and a third for a client monitor or editing monitor. This allows you to see your video at full-screen like someone would on a television. This video card is one that is recommended by Adobe.
Video Display
Cost: $ 499.99
3 Displays - Dell U2718Q (two as edit monitors and one as a client monitor)
Brand Dell
Model U2718Q
Cabinet Color Black
Display
Screen Size 27"
Glare Screen Yes
LED Backlight Yes
Recommended Resolution 3840 x 2160 (4K)
Viewing Angle 178° (H) / 178° (V)
Pixel Pitch 0.1554mm x 0.1554mm
Display Colors 1.07 Billion
Brightness 350 cd/m2
Contrast Ratio 1,300:1
Aspect Ratio 16:9
Response Time 5 ms
Panel IPS
Display Type 4K
Connectivity
HDMI 1
DisplayPort 1 x DP (ver. 1.2)
1 x mDP (ver. 1.2)
USB 2.0 Yes
USB 3.0 1 x USB 3.0 port - Upstream
4 x USB 3.0 ports, including 2 x USB3.0 BC1.2 charging capability at 2A (max)
Power
Power Supply 100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.5 A (typical)
Power Consumption Power Consumption (Operational): 30W (typical) / 99W (maximum) / 24.32W (Energy Star)
Power Consumption Stand by / Sleep: Less than 0.3W
Convenience
Regulatory Approvals Energy Star certified
EPEAT Gold
TCO Certified Display
RoHS Compliant
Stand Adjustments Height adjustable (130 mm)
Tilt (-5 degree to 21 degree)
Swivel (-45 degree to 45 degree)
Pivot (90 degree, clockwise & anti-clockwise directions)
Built-in Speakers USB Hub
Built-in Webcam USB Hub
VESA Compatibility - Mountable 100 x 100mm
Features Display Screen Coating: Antiglare with hard-coating 3H
Pixel Per Inch (PPI): 163
Dell Display Manager Compatibility: Yes, Easy Arrange and other key features
Remote Asset Management: Yes, via Dell Command |Monitor
Operating system supported: Windows 10, 8.1. 7
Built-in Devices: USB3.0 super-speed Hub (4 x USB3.0 downstream ports, including 2x USB 3.0 BC1.2 charging port at 2A max.)
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to panel)
Dimensions & Weight
Dimensions (H x W x D) 16.15" - 21.27" x 24.07" x 7.89" w/stand
14.02" x 24.07" x 1.93" w/o stand
Weight 8.16 lbs. w/o stand
Environmental
Temperature Range Operating: 0 degree C to 40 degree C (32 degree F to 104 degree F)
Non-operating: –20 degree C to 60 degree C (–4 degree F to 140 degree F)
Humidity Range Operating: 10% to 80% (non-condensing)
Non-Operating:5% to 90% (non-condensing)
https://www.neweggbusiness.com/product/product.aspx?item=9siv0sf9c09501
Reason:
When working on a non-linear editor you need to have color-accurate displays and the 27 inch Dell monitors have a good reputation for this. These displays had some problems early in their release but now thanks to updates they are wonderfully priced monitors. This three monitor set up lets the editor have two for screen layout and one monitor dedicated to full-screen display.
Speakers
Cost: $ 24.88
1 - Logitech Z200
Brand Logitech
Model Z200
Part Number 980-000800
Details
Type Speaker System
Color Black
Configuration 2.0
Total Power 5 Watts
System Requirements Any device with a headphone jack (3.5 mm) input
Television
Computer
Smartphone
Tablet
Music player
Dimensions & Weight
Dimension 9.50" x 3.54" x 4.89"
Weight 3.05 lbs.
Features
Features Rich stereo sound: Two 2.50" drivers per speaker pump out 10 Watts peak power for clear stereo sound with added deep bass
Use with multiple devices: Plug in two devices at the same time, like your smartphone plus tablet or laptop, via a 3.5 mm audio input plus auxiliary line
Fingertip controls: On-speaker volume, power and bass controls for quick and easy audio adjustments
Handy headphone jack: Listen to music, movies and games in total privacy
https://www.neweggbusiness.com/product/product.aspx?item=9siv0b649b6925
Reason:
When working with sound in your video projects you need speakers that don't take up a lot of desk space but still can deliver full sound so you know what your video projects will sound like. These will be attached to the audio board on the motherboard above.
Operating System:
Cost: $ 199.99
1- Windows 10 Pro (USB Flash Drive)
Brand Microsoft
Model HAV-00059
Details
Name Windows 10 Pro (USB Flash Drive)
Bit Version 32-bit/64-bit
Version Pro
Packaging Retail
Features
Feature Get all the features of Windows 10 Home operating system plus enterprise-grade security, powerful management tools like single sign-on, and enhanced productivity with Remote Desktop and Cortana. Licensed for 1 PC or Mac.
If you run a small business and want enhanced functionality, Windows 10 Pro is the way to go; Manage your business with simple and flexible management, so you can get more done; Windows 10 Pro comes with built-in security features, including firewall and internet protections; BitLocker data encryption and protection help keep your information safe; Windows Hello is the password-free sign-in that gives you the fastest, most secure way to unlock your Windows devices.
https://www.neweggbusiness.com/product/product.aspx?item=9b-32-350-412
Reason
Windows 10 is the industry standard for PC computers and is compatible with the other software that will be installed on this system.
Additional Software:
Cost: $ 54.97 per year
Office 365 Personal - 1 Year / 1 Person
Brand Microsoft
Model QQ2-00728
Type Office Suite
Details
Name Office 365 Personal - 1 Year / 1 Person
Operating Systems Supported Windows & Mac OS & Android & iOS
Packaging Retail
https://www.neweggbusiness.com/product/product.aspx?item=9siv1uzafd7535
Reason:
The industry standard for word processing, email, spreadsheets, and presentations.
Additional Software:
Cost: $ 599.88 per year
Adobe Creative Cloud All Apps
INCLUDES:
Photoshop
Illustrator
InDesign
Adobe XD
Lightroom
Acrobat Pro
Animate
Dreamweaver
Premiere Pro
Premiere Rush
After Effects
Dimension
Audition
InCopy
Lightroom Classic
Media Encoder
Character Animator
Prelude
Fuse
Bridge
Access to the latest features and updates as soon as they’re released
100GB of cloud storage, Adobe Portfolio, Adobe Fonts, and Adobe Spark
https://www.adobe.com/creativecloud/plans.html?promoid=P3KMQYMW&mv=other
Reason:
This is the best complete bundle for anyone wanting to do video production and graphics generation.
Warranty:
With the cost of these systems, it is risky but best to just go with the manufacturers' standard warranties. So 1-year parts and 90 days labor. This is an area where you can save some money even though it means taking a bit of a gamble.
Backup:
Cost: $ 200.99
1 - WD WDBBGB0100HBK-NESN
Brand WD
Series My Book
Model WDBBGB0100HBK-NESN
Performance
Color Black
Interface USB 3.0
Capacity 10TB
Features
Features Complete Backup
My Book desktop storage comes equipped with WD Backup software and Time Machine compatibility to help make sure your photos, videos, music and documents don't get lost. You can set it to run automatically to your schedule. Just pick the time and frequency to back up important files from your system. My Book desktop storage also works great with Acronis True Image WD Edition software to schedule complete system backups.
With the power of WD Backup, Time Machine compatibility and Acronis True Image WD Edition software, you've got complete backup routine options to help recover data in the event of a computer virus, computer failure, or if you accidentally press "delete".
Password Protection with Hardware Encryption
The My Book device's built-in 256-bit AES hardware encryption with WD Security tools helps keep your content private and safe. Just activate password protection and set your own personalized password.
For quick, convenient access, you can set WD Security to automatically unlock the device on your computer, saving you the hassle of keying in your password every time.
Do more with WD Discovery
Included WD Discovery software connects to popular social media and cloud storage services, like Facebook, Dropbox and Google Drive. Import your photos, videos and docs to the My Book drive to help preserve your online life. WD Discovery can also be used to manage your drive with WD Drive Utilities.
Easy to Use
My Book desktop storage is ready to use out of the box so you can start transferring files, saving your memories and backing up right away. It comes with all the software you need to help protect your data, including WD Backup and WD Security software and is compatible with Time Machine.
System Requirements Formatted exFAT for out-of-the-box compatibility with Windows and Mac
Operating System: Windows 10, Windows 8.1, Windows 7; macOS High Sierra, Sierra or El Capitan
May require reformatting for other operating systems
https://www.neweggbusiness.com/product/product.aspx?item=9b-22-234-346&tpk=9b-22-234-346
Reason:
This external hard drive adds an extra layer of backup beyond the installed RAID 5 already used the computers internal system. WD is another industry standard when it comes to dependable affordable hard drives.
Total Cost without annual subscriptions: $ 3,912.01
Total Cost with an annual subscription the first year: $ 4,566.86
Summary:
Working with video and doing graphics work is some of the most intensive and expensive work that a computer can do. When building a work station for projects such as these you want to spend more upfront so that your system is not obsolete in three years. The hope is you can get at least four to six years out of the hardware before the production software makes it obsolete.
Comments
Post a Comment
